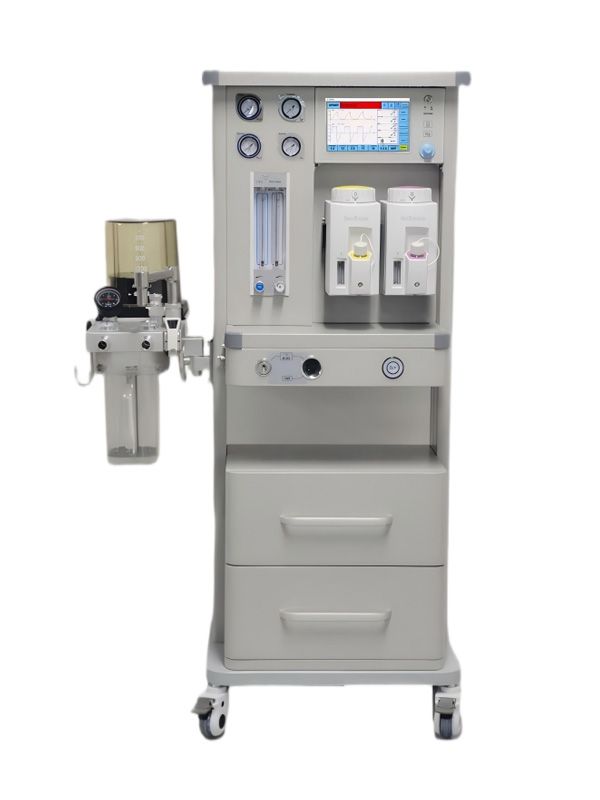

Feature:
●More convenient operating and display systems for clinical operations,suitable for a wide range of anesthesia at adult,pediatric
●Comprehensive Safety&Alarm system,make sure the operation accuracy and stability
●8 inch TFT display with touch screen,shuttle knob design, quick and efficient operation
●Integrated absorber design with good cable management solution,convenient to discharge and install timely..
●Powerful ventilation mode meet all complex clinical requirement
●Three levels alarm system, visual and sound alarm information.
●The core components are imported from top international and original, and the industrial control chip is chosen
●High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision
●High precious anesthesia vaporizer with temperature,flow and pressure compensation
●Top-light system design provide more good vision
●Built-in backup battery provide the emergency power supply to the unit.
●Low O2 pressure alarm and N2O cut-off protection.
Technical Specifications
Display:8 " TFT, with touch screen.
Working Mode:Closed,Semi-closed,,semi-open system,Open
Ventilation Mode:VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.
Optional: SIMV-PRVC, PRVC
Waveform:Pressure,Flow-rate,Volume
Loop:PV loop, PF loop,FV loop
Safety Pressure:Does not exceed 6 KPa.
Battery Type:Li-ion,work time more than 2 hours
Parameter Setting Range:
Tidal Volume:Range: 20 - 1500ml;
Respiratory rate::1~100 bpm;
Inspiratory time:0.1 ~ 10.0 s;
Respiratory ratio: 9.9:1 to 1:9.9;
Percentage of inspiratory pause:0 to 50%;
PEEP:OFF, 3 ~ 20 cmH2O
Pressure Support:0 ~ 60 cmH2O
Pressure Control:5 ~ 60 cmH2O
Flow trigger: 0.5 ~ 20L/min
Pressure Trigger: -1 ~ -20 cmH2O
PSV Insp Termination Level:25%
Monitoring Parameter
Inspiratory tidal volume,Expiratory tidal volume,Minute ventilation,Spontaneous minute ventilation,Respiratory rate,Spontaneous breathing frequency,Respiratory ratio,Peak airway pressure,Mean airway pressure,PEEP,Inspiratory plateau pressure,FiO2(optional)
Alarm Setting:
Tidal volume:High 0 ~ 2000 mL, OFF;Low 0 ~ 1500 mL
Minute ventilation:High 1 ~ 99 L;Low 0 ~ 98 L
Respiratory rate:High 1 ~ 100bpm;Low 0 ~ 99 bpm
FiO2(optional):High 19 ~ 100%;Low 18 ~ 99%
Airway pressure:High 6 ~ 99 cmH2O, ;Low 0 ~ 9 8 cmH2O
FiCO2 (optional):High 0.1 to 13.3%; Low 0 to 13.2%
Continuous Positive Airway Pressure:Greater than (PEEP +15) cmH2O,
15 s sustained when an alarm is triggered.
Negative pressure alarm:Airway pressure is less than (-10) cmH 2 O.
Apnea alarm:Setting time is 10 ~ 60 s
Gas deficiency alarm:less than 280 kPa.
AC power failure alarm:The mains breaks down or the power cord disconnects
Low battery alarm: Time is 20 min.
Alarm battery is exhausted: time is 10 min.
Silent Alarm:≤ 120 s
O2 sensor failure:FIO2 <15% Vol;
Driving gas:O2 or Air,Inlet pressure,280-600 kPa.Max flow ≤ 120 L / min.
Anesthesia Vaporizer:Dvapo200plus Selectatec bar mounting type
CO2 Absorber:Twins canister,2 L volume for sadalime,wth no-return respiration valve and inspiraition valve,avoid gas back flowing.
Flow meter:O2,N2O TWO TUBES FLOWMETE
1*O2 tubes:0-1L/min, 1-10L/min 1*N2O tubes:0-1L/min, 1-10L/min
Mechanical flowmeter O2,N2O and air (Optioanl)
N2O will be auto cut when O2 supply failure
O2 and N2O linkage device,keep O2 not low than 25%
Bellow:Adult bellow(300-1800ml) and pediatric bellow(0-300ml).
Gauge: Two gas supply pressure gaugage( O2,N2O )
Three gas working prssure gauage (O2,N2O and air)(optioanal)
One gas airway pressure gauge
Gas supply pressure:0.27-0.55Mpa
O2 Flush:25-75LPM
Gas switch:Control gas source with starting or stopping
Optional:
Yoke system:Pin index O2 and N2O Yokes System,
backup gas will auto working when central gas supply fail
AGSS:(Anesthesia Gas Scavenging System)
ETCO2:End-Tidal Carbon Dioxide
