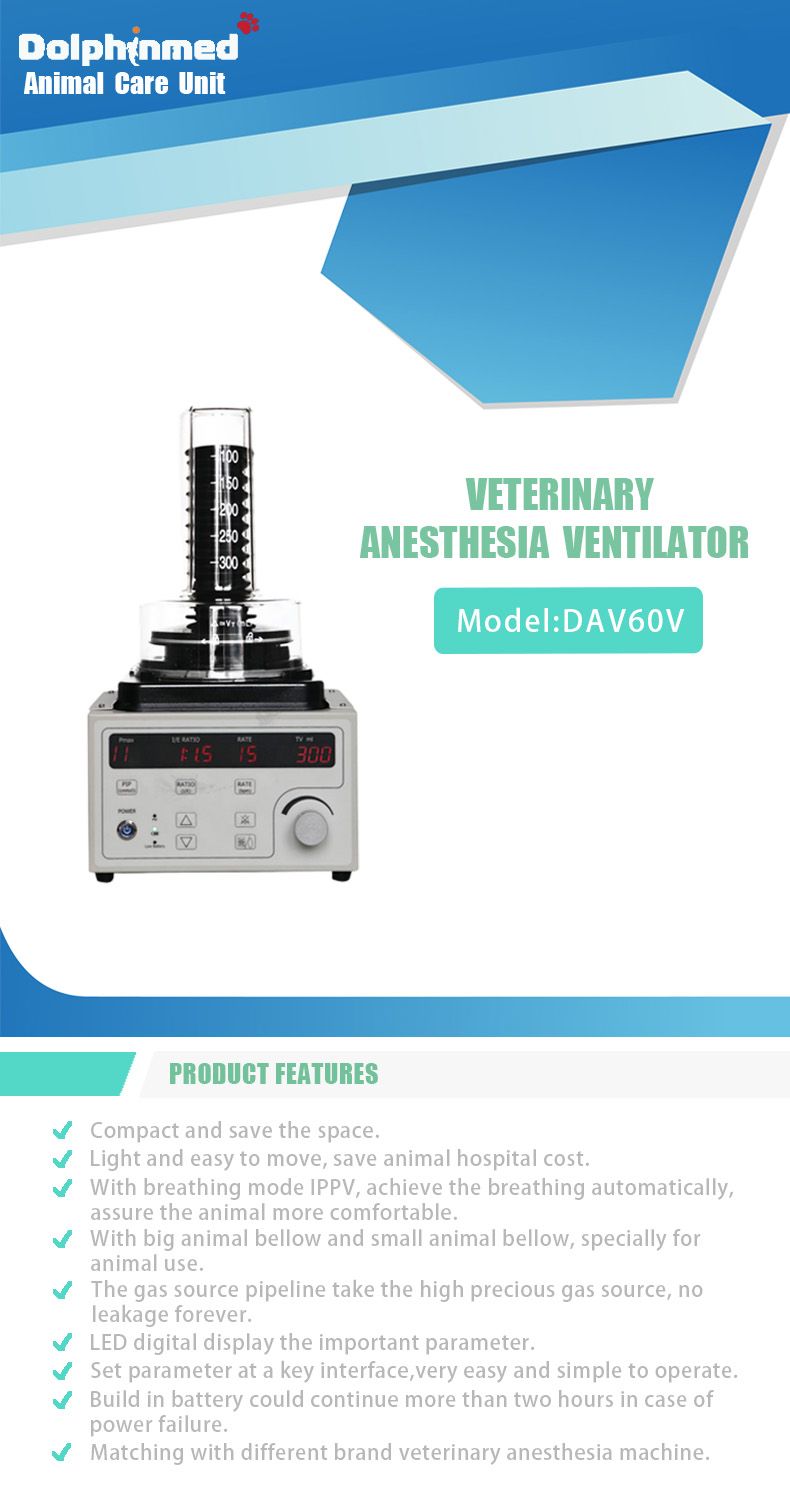

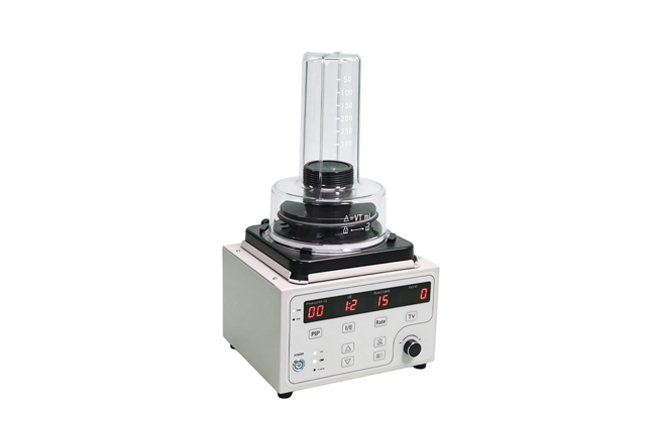

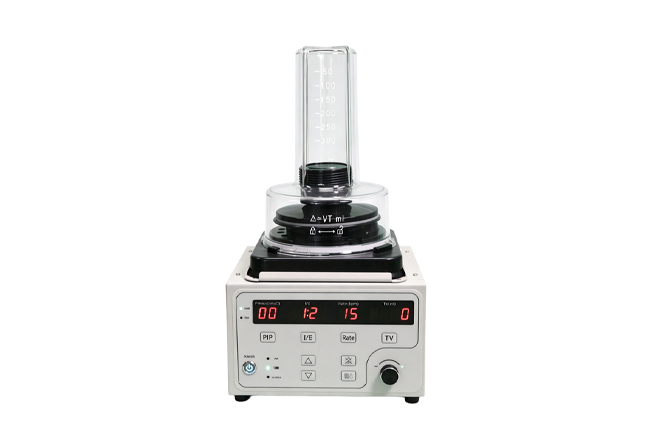

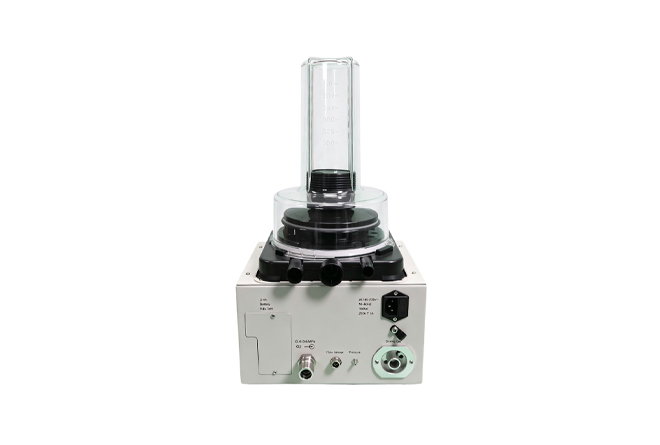

Anesthesia Ventilator(Model：DAV60)

Share:

Specially use for big animal and small animal anesthesiaventilator,could widely apply in vet hospital,animal R&Dinstitute,university laboratory,animal clinic,animal zoo,etc.

立即咨询下一款产品

产品描述

Feature：

● suitable for e range of anesthesia at adult，pediatric

● Built-in backup battery provide the emergency power supply to the unit at 2 hours

● PIP setting 5-60cmH2O,suit for wide range operation

● With breathing mode IPPV,achieve the breathing automatically,Assure the patient more comfortable.

● With adult bellow and child bellow

● the gas source pipeline take the high precious gas source,no leakage forever.

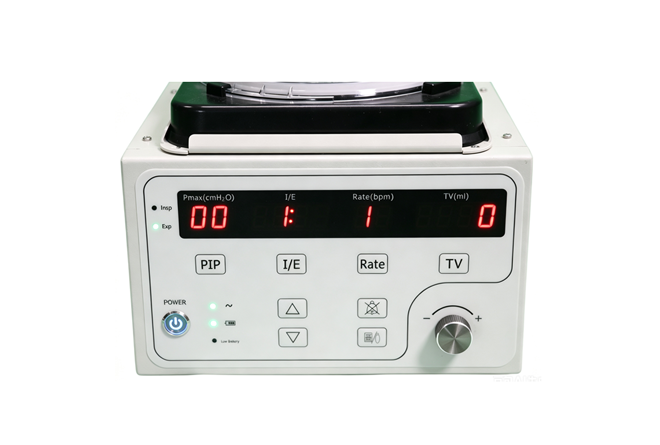

● LED digital display the important parameter.

● Set parameter at a key interface,very easy and simple to operate.

● Matching with different brand anesthesia machine

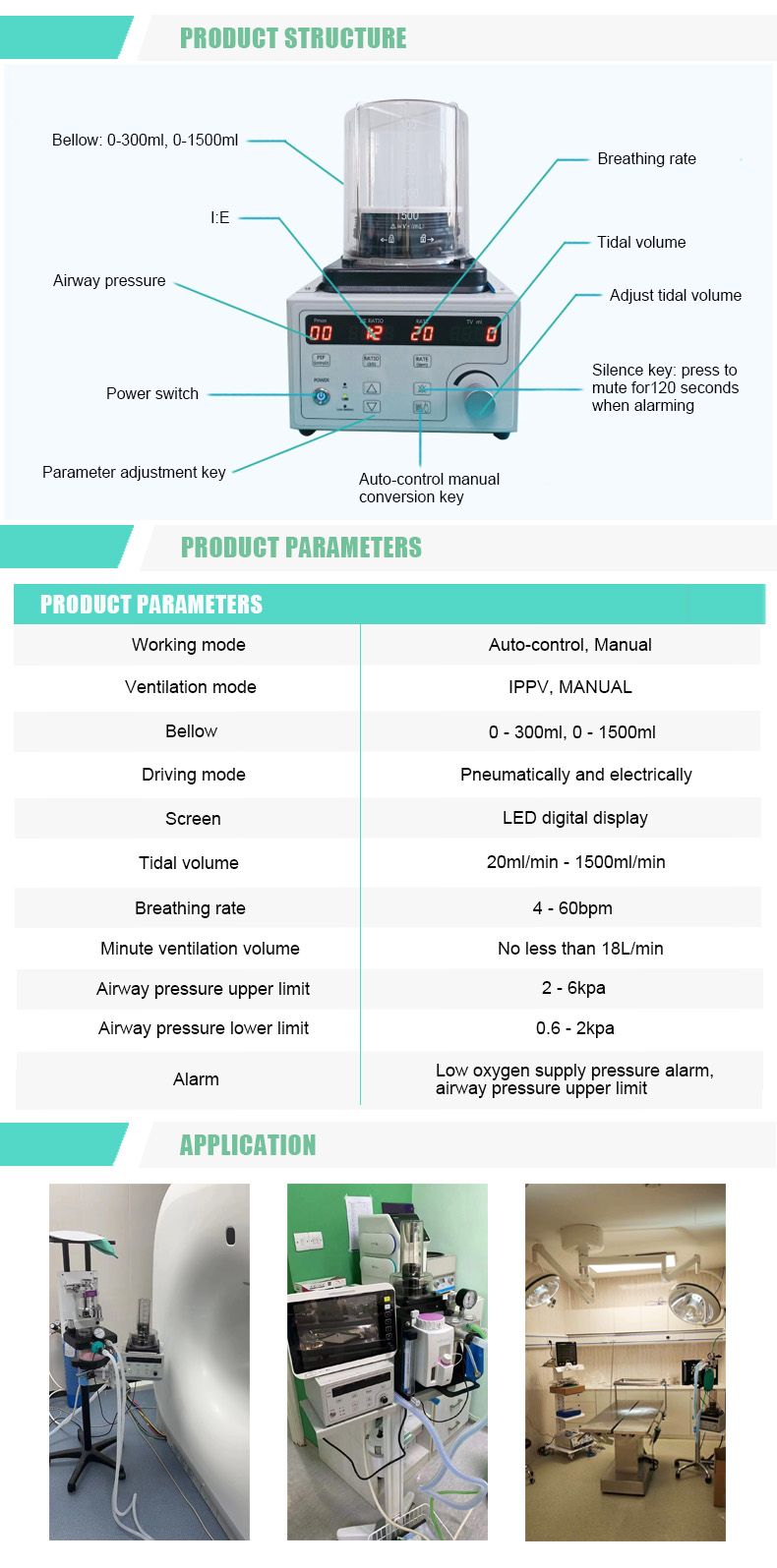

Specification：

Ventilation mode:IPPV,Manuel

Pneumatically driven and electrically controlled

Display:LED digital display

Bellow：Adult：300-2000ML Pediatric：0-300ML

Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,

TV:50-1600ml

Breathing rate:4~60bpm

I:E ration:1:1~1:4 adjustable

Upper airway pressure:2~6kpa

Lower airway pressure:0.6~2kpa

Alarm:Battery low,Power failure,Airway pressure high/low

Alarm Silence

Manuel/Auto Switch

PIP sets：5-60cmH2O
